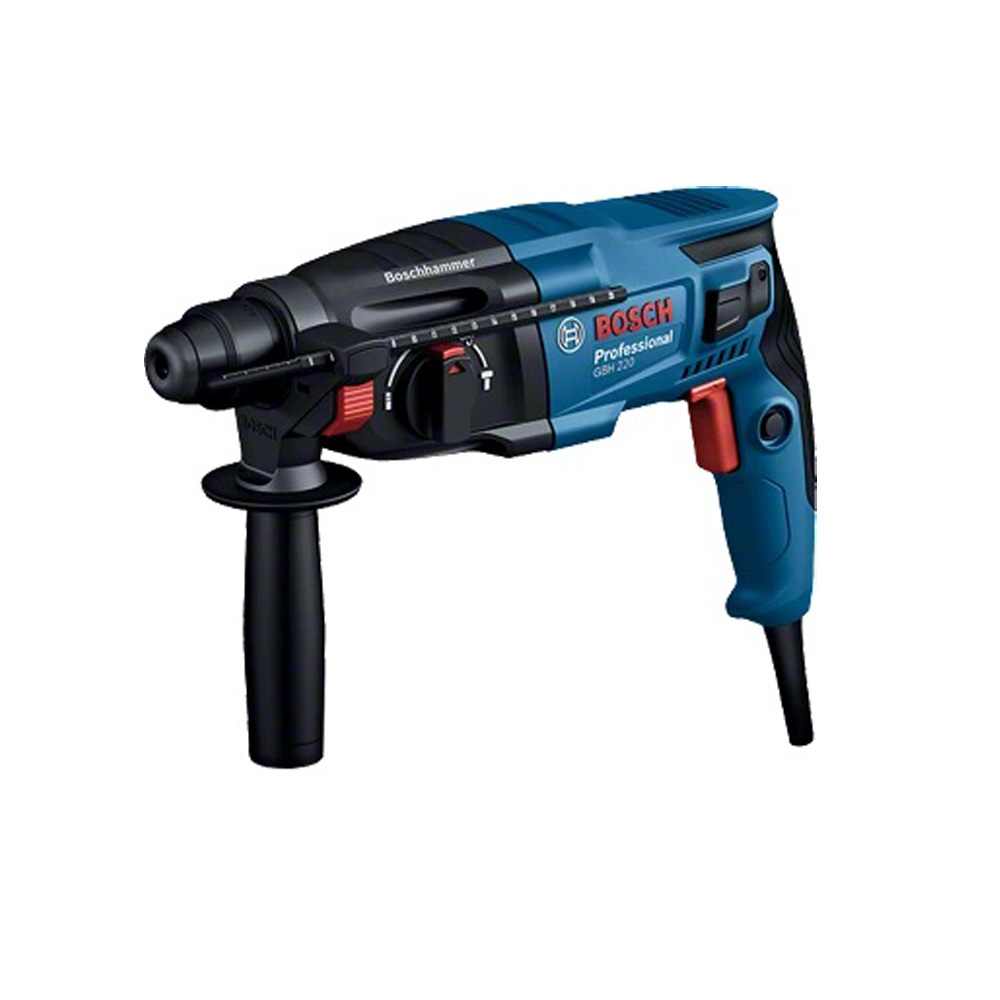

So compact, so powerful – Bosch’s rotary hammer now within reach
- Powerful 720 W motor and 2.0 J of impact energy for effective hammer drilling in concrete (up to 22-mm diameter)
- Three-mode rotary hammer for hammer drilling, drilling, and chiselling – ensuring versatility and convincing results
- Compact rotary hammer offers professional Bosch hammer performance within reach
Additional data |
|
|---|---|
| Rated input power | 720 W |
| Impact energy | 2 J |
| Weight | 2.3 kg |
| Impact rate at rated speed | 0 – 4,800 bpm |
| Tool dimensions (width) | 88 mm |
| Tool dimensions (length) | 334 mm |
| Tool dimensions (height) | 205 mm |
| Tool holder | SDS plus |
Drilling range |
|
|---|---|
| Drilling dia. concrete, hammer drill bits | 4 – 22 mm |
| Max. drilling diameter in metal | 13 mm |
| Max. drilling diameter in wood | 30 mm |
| Max. drilling diameter concrete | 22 mm |
Total vibration values (Hammer drilling in concrete) |
|
|---|---|
| Vibration emission value ah | 14.7 m/s² |
| Uncertainty K | 1.5 m/s² |
Total vibration values (Chiselling) |
|
|---|---|
| Vibration emission value ah | 11.9 m/s² |
| Uncertainty K | 1.5 m/s² |
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
